King Kutter 4′ Gear Driven Tiller, Yellow – TG-48-Y – Tillers

Product Description:

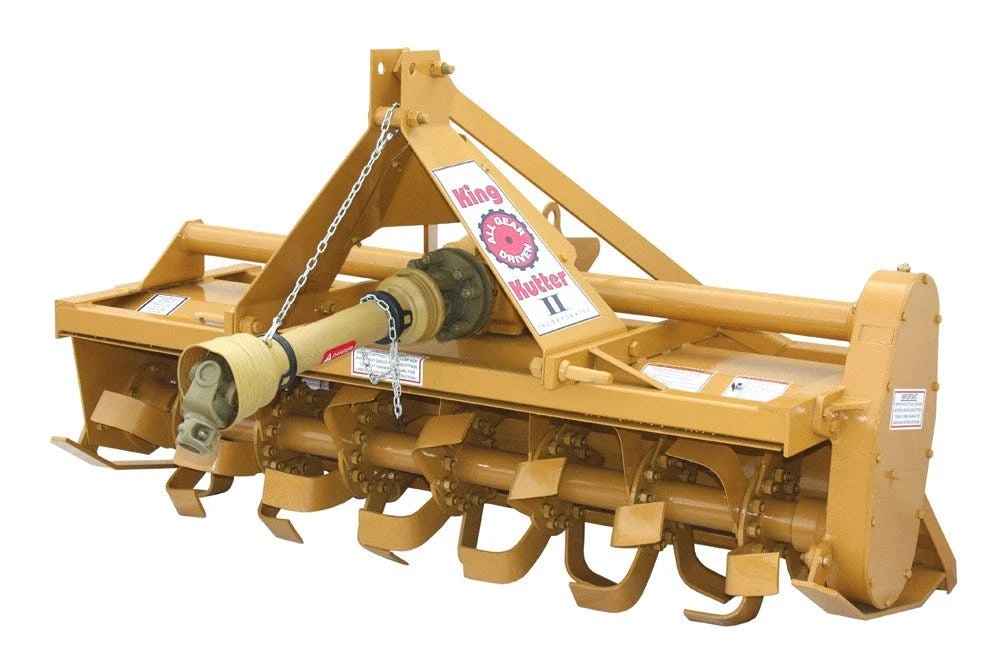

King Kutter’s 4′ GEAR DRIVEN ROTARY TILLER (TG-48) is designed to perform with its heavy duty gear drive and square tube frame. With 6 tines per flange, you get maximum soil mix for preparing planting beds, gardens, incorporating fertilizer, landscaping, or other jobs. This Category 1 tiller includes a PTO shaft with heavy duty slip clutch. Available in 4, 5, and 6 ft. models. The 4 ft. model is offset to eliminate tire tracks.

This model is ideal for tractors with 20-35 horse power.

Product Features:

• Gear Drive
• Heavy-Duty Frame
• Adjustable Tailgate
• Slip Clutch Drive Line Standard
• Six Tines per Flange
• Number of Tines: 36

Specifications:

Model:	TG-48
PTO Speed Required	540
Tractor HP Range	20-35 HP
Approx. Weight	569 lbs.
PERFORMANCE
Working Width	48″
Max. Tilling Depth	8″
Rotor Shaft Speed (RPM)	210@540
Gearbox Protection	Slip Clutch
CONSTRUCTION
Rotor Drive Type	Gear
No. of Flanges	6
No. of Tines per Flange	6
Hitch	Cat I
Input Drive Line Category	ASAE Cat. 4
Tine Type	L shaped
Tine Spacing	7.875″
