King Kutter 5′ Gear Driven Tiller, Yellow – TG-60-Y – Tillers

Product Description:

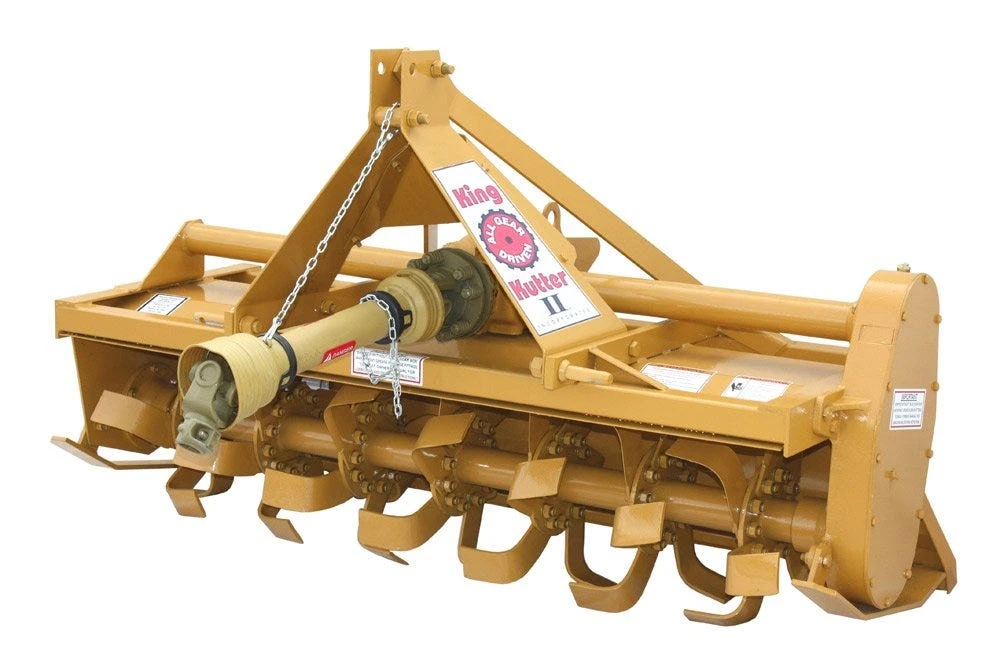

King Kutter’s 5′ GEAR DRIVEN ROTARY TILLER (TG-60) is designed to perform with its heavy duty gear drive and square tube frame. With 6 tines per flange, you get maximum soil mix for preparing planting beds, gardens, incorporating fertilizer, landscaping, or other jobs. This Category 1 tiller includes a PTO shaft with heavy duty slip clutch. Available in 4, 5, and 6 ft. models. The 4 ft. model is offset to eliminate tire tracks.

This model is designed for the most popular compact tractors in the 25-40 horse power range.

Product Features:

• Gear Drive
• Heavy-Duty Frame
• Adjustable Tailgate
• Slip Clutch Drive Line Standard
• Six Tines per Flange

Specifications:

Model:	TG-60
PTO Speed Required	540
Tractor HP Range	25-40 HP
Approx. Weight	630 lbs.
PERFORMANCE
Working Width	60″
Max. Tilling Depth	8″
Rotor Shaft Speed (RPM)	210@540
Gearbox Protection	Slip Clutch
CONSTRUCTION
Rotor Drive Type	Gear
No. of Flanges	7
No. of Tines per Flange	6
Hitch	Cat I
Input Drive Line Category	ASAE Cat. 4
Tine Type	L shaped
Tine Spacing	7.875″
